Lightning Arrester FV50B/1

Item No: FV50B/1-xxx
-Lightning surge arresters with compact construction design,
-Used in the lightning protection zones concept at boundary LPZ0B-LPZ1,
-The core parts are spark gap with high discharge capacity,
-35mm2 DIN-rail in accordance with EN 50022/DIN46277-3,
-Low residual voltage and quick response.
-Protection mode: L-N / L-PE.

Product Description

1.Coding system

2.Dimension of lightning arrester FV50B/1-xxx

3.Electrical parameters of lightning arrester FV50B/1-xxx

Model No.   FV50B/1-150 FV50B/1-255 FV50B/1-275 FV50B/1-320 FV50B/1-385
Test class according to IEC61643-11:2011 I
Type of Network TT-TN-IT
Nominal voltage UN 110/220V 220/380V
Rated Voltage (Max. Cont. Operating Voltage) Uc 150VAC 255VAC 275VAC 320VAC 385VAC
Impulse current (10/350μs) Iimp 50kA 50kA 50kA 50kA 50kA
Nominal discharge current (8/20μs) In 50kA 50kA 50kA 50kA 50kA
Voltage protective level at 25kA Up ≤1.8kV ≤1.8kV ≤1.8kV ≤2.0kV ≤2.0kV
Isolation resistance Risol >102 >102 >102 >102 >102
Response time tA ≤100ns ≤100ns ≤100ns ≤100ns ≤100ns
Recommended back-up fuse 500A
I/O Connections By screw terminal:10-35mm2
By connection bus
Mounting Symmetrical rail (EN50022/DIN46277-3)
Operation temperature range / RH -25℃~+85℃/95%
Degree of protection IP20
Encapsulated Encapsulated
Housing material UL94V0
Disconnection indicator Without
Remote control contact Without
Color gray

Hot Tags:lightning surge arrester, lightning surge arrester manufacturer,China lightning surge arrester,
lightning surge arrester supplier

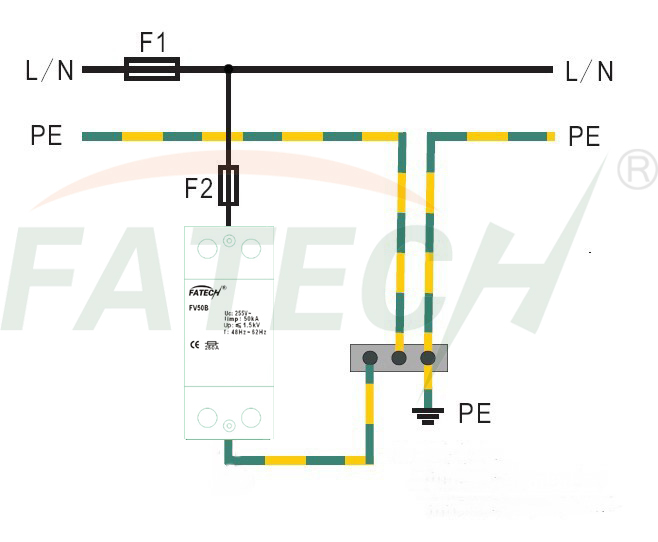

4.Installation of lightning arrester FV50B/1-xxx
